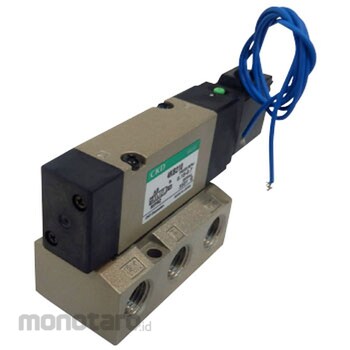

CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4 KB 2 Series 4KB210-08-AC100V 1pc
Rp1.499.900
Persediaan
Spesifikasi Produk
| Model Number | 4KB210-08-AC100V |
|---|---|
| Unit | 1pc |
| Atmosphere | Not available in corrosive gas atmosphere |
| Body Material | Aluminium Alloy Die Casting |
| Type | Sub plate piping type |
| Connection aperture (Rc) | 1/4 |
| Protective Structure | Dustproof |
| Switching Method | 2 position single |
| Starting Current (A) | 50 Hz: 0.056, 60 Hz: 0.044 |
| Fluid Temperature (°C) | 5 to 50 |
| Maximum Working Pressure (MPa) | 0.7 |
| Vibration (m/s²) | less than 50 |
| Response Time | 30 ms or less |
| Mass (g) | 200 |
| Power Consumption (W) | 50Hz: 1.8. 60Hz: 1.4 |
| Holding Current (A) | 50 Hz: 0.028, 60 Hz: 0.022 |
| Rated voltage fluctuation Range | +/- 10% |
| Valve Specification | Pilot type soft spool valve |
| Refueling | Unnecessary |
| Manual operation Method | Non-locking manual device |
| Heat resistant class | B (mold coil) |
| Working Fluid | Compressed air |
| TRUSCO Number | 112-5915 |
| M Code | 2096141 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 13 May 2019 |
| Terakhir Diperbaharui | 01 August 2025 |
