CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4 KB 1 Series 4KB120-06-DC24V 1pc

Name: CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4 KB 1 Series 4KB120-06-DC24V 1pc
Brand: CKD
SKU: S010327906
Price: 2299900 IDR
Availability: OutOfStock

#Nomor SKU S010327906

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	4KB120-06-DC24V
Unit	1pc
Number of Ports	5
Refueling	Unnecessary
Wire Connection Method	Grommet lead wire
Holding Current (A)	0.075
Connection aperture (Rc)	1/8
Response Time	30 ms or less
Effective Cross Section Area (mm²)	4
Rated Voltage (V)	DC24
Vibration (m/s²)	less than 50

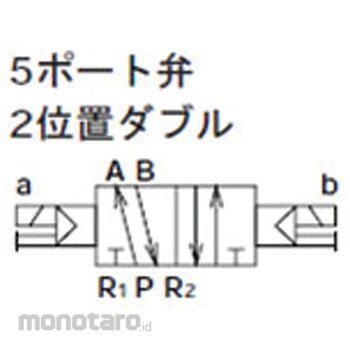

Switching position classification	2 position double
Minimum Working Pressure (MPa)	0.15
Maximum Working Pressure (MPa)	0.7
Atmosphere	Not available in corrosive gas atmosphere
Temperature rise	43 °C
Mass (g)	140
Type	Sub plate piping type
Ambient Temperature (°C)	-5 to 50
Protective Structure	Dustproof
Power Consumption (W)	1.8
Heat resistant class	B (mold coil)
M Code	5709487
Berat (Kg)	0.8
Tanggal Produk Terdaftar	13 May 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

High reliability: new design of soft spool we have extended reliability. Long life: to achieve a long life by adopting packing with excellent wear resistance of the new development. Response: by a special packing of the new development, responsiveness, su
