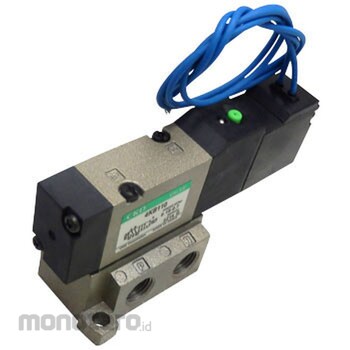

CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4 KB 1 Series 4KB110-06-AC100V 1pc
Rp1.199.900
Persediaan
Spesifikasi Produk
| Model Number | 4KB110-06-AC100V |
|---|---|
| Unit | 1pc |
| Refueling | Unnecessary |
| Maximum Working Pressure (MPa) | 0.7 |
| Atmosphere | Not available in corrosive gas atmosphere |
| Vibration (m/s²) | less than 50 |
| Connection aperture (Rc) | 1/8 |
| Rated voltage fluctuation Range | +/- 10% |
| Valve Specification | Pilot type soft spool valve |
| Type | Sub plate piping type |
| Minimum Working Pressure (MPa) | 0.15 |
| Fluid Temperature (°C) | 5 to 50 |
| Impact (m/s²) | 300 or less |
| Power Consumption (W) | 50Hz: 1.8. 60Hz: 1.4 |
| Protective Structure | Dustproof |
| Manual operation Method | Non-locking manual device |
| Ambient Temperature (°C) | -5 to 50 |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Rated Voltage (V) | AC 100 (50/60 Hz) |
| Working Fluid | Compressed air |
| Mass (g) | 100 |
| Switching position classification | 2 position single |
| TRUSCO Number | 112-5877 |
| M Code | 2096105 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 13 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
