CKD New Joint GW (Fitting) / (Single-Ended Straight (Circle) GWS12-15-S 1box(10pcs)
Rp619.900
Persediaan
Spesifikasi Produk
| Model Number | GWS12-15-S |
|---|---|
| Unit | 1box(10pcs) |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Applicable pipe outer diameter ( phi mm) | 12 |
| Maximum Working Pressure (MPa) | 1 |
| Working Fluid | Compressed air |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Negative pressure performance (kPa) | -100 |
| Hexagon hole diameter (mm) | 8 |
| Effective Cross Section Area (mm²) | 37.9 |
| TRUSCO Number | 401-6556 |
| M Code | 39607775 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

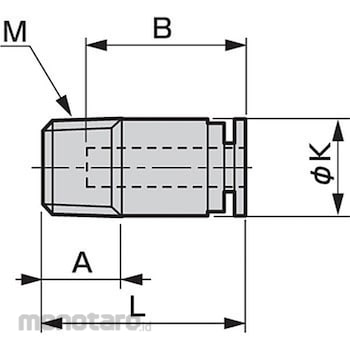

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension B (mm)=23; Dimension K ( phi mm)=22; Dimension A (mm)=15; Dimension M (mm)=R1/2; Dimension L (mm)=28.5
