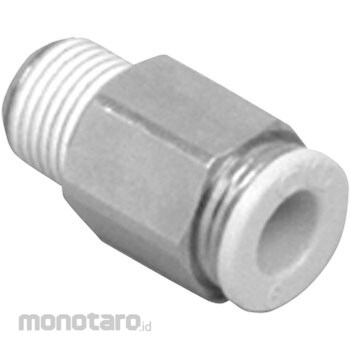

CKD New Joint GW (Fitting) / (Single-Ended Straight (Circle)
#Grup produk P103120658
Spesifikasi
| Negative pressure performance (kPa) | -100 |
|---|---|
| Working Fluid | Compressed air |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Applicable pipe outer diameter ( phi mm) | 12 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension B (mm)=23; Dimension K ( phi mm)=19.5; Dimension A (mm)=11; Dimension L (mm)=34; Dimension M (mm)=R1/4
