CKD New Joint GW (Fitting) / (Manifold (Double) GWMF812-0-W 1pc

Name: CKD New Joint GW (Fitting) / (Manifold (Double) GWMF812-0-W 1pc
Brand: CKD
SKU: S010073537
Price: 219900 IDR
Availability: InStock

#Nomor SKU S010073537

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	GWMF812-0-W
Unit	1pc
Used Tube	Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * )
Effective Cross Section Area (mm²)	36
Working Fluid	Compressed air
Maximum Working Pressure (MPa)	1
Operating Temperature (°C)	-10 to 60 (but not frozen)
Negative pressure performance (kPa)	-100
Applicable pipe outer diameter ( phi mm)	Q1: 8, Q2: 12
M Code	39610934
Berat (Kg)	0.8
Tanggal Produk Terdaftar	11 May 2019
Terakhir Diperbaharui	04 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

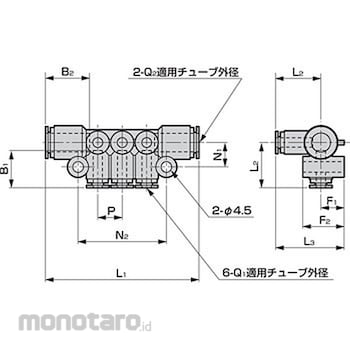

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension L2 (mm)=24.5; Dimension F1 (mm)=11.5; Dimension L3 (mm)=36; Dimension B1 (mm)=19; Dimension N1 (mm)=13; Dimension L1 (mm)=87; Dimension B2 (mm)=23; Dimension N2 (mm)=51; Dimension P (mm)=15; Dimension F2 (mm)=22
