CKD New Joint GW (Fitting) / (Manifold (Double)
#Grup produk P103120603
Spesifikasi
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
|---|---|
| Negative pressure performance (kPa) | -100 |
| Maximum Working Pressure (MPa) | 1 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

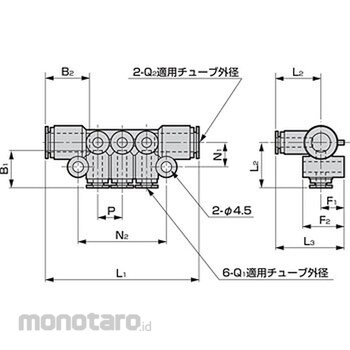

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension L1 (mm)=66; Dimension N2 (mm)=38; Dimension N1 (mm)=10.5; Dimension F2 (mm)=17.5; Dimension L2 (mm)=19.5; Dimension B1 (mm)=16; Dimension B2 (mm)=19; Dimension F1 (mm)=10; Dimension L3 (mm)=29.5; Dimension P (mm)=10.5
