JST Connector for Relay Connection EL Series Housing ELR-02VF White 1pack(10pcs)
Rp16.900
Persediaan
Spesifikasi Produk
| Model Number | ELR-02VF |
|---|---|
| Unit | 1pack(10pcs) |
| Number of Poles | 2 |

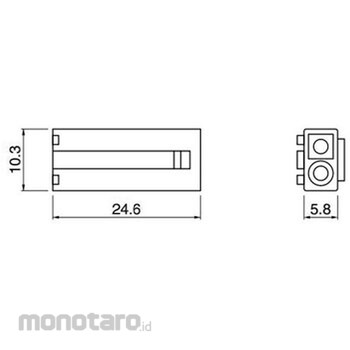

| Dimensions c (mm) | 5.8 |
| Dimensions a (mm) | 10.3 |
| Dimensions b (mm) | 24.6 |
| Compatible Panel Thickness (mm) | 0.8 to 2.0 |
| Insulation Resistance (MΩ) | Over 1000 |
| Operating Temperature Range (°C) | -25 to + 90.(Including temperature rise value during energization) |
| Electric AWG Wire Conjugation Range (#) | 26 to 16 |
| Withstand Voltage | AC 1500 V for 1 minute |
| Rated Current (A) | MAX 10 AC, DC |
| Rated Voltage (V) | MAX 300 AC, DC |
| Standard | Recognised E 60389. Certified LR 20812. R 75052 |
| Material | Nylon 6, UL 94 V-0 |
| Type | Resectable housing |
| Contact Resistance (miliΩ) | Initial: 7 or less. After environmental test: 10 or less |
| M Code | 00328405 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 28 November 2018 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Easy to Insert, Excellent Contact Force, Superior in Inserting Screws at Connector Engagement, Arm Lock Mechanism with Excellent Durability, Double Crimp Contact, Compatibility with ML Connector
Operating Temperature Range -25 to +90°C (Including Tem
