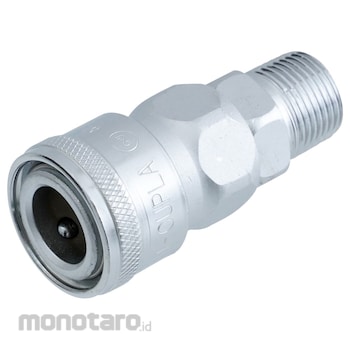

NITTO KOHKI Hi-Coupler Socket for Female Thread Installation 30SM 1pc
Rp90.900
Persediaan
Spesifikasi Produk
| Model Number | 30SM |
|---|---|
| Unit | 1pc |
| Socket or Plug | socket |
| Withstand Pressure (MPa) | 2 |
| Dimension Hs (mm) | Hex.19 |
| Maximum Operating Pressure (MPa) | 1.5 |
| Dimension A (mm) | 14 |
| Screw Diameter T | R3/8 |
| Material (Main Unit) | Steel (chrome plating) |
| Dimensions d (mm) | Φ26.5 |
| Material (Seal) | Nitrile rubber |
| Suitable fluid | Air |
| Type of Connection | Male screw |
| Dimension Bs (mm) | 8 |
| Mating Connection Size | Rc3/8(PT3/8) |
| Dimension Ls (mm) | 56.5 |
| Valve Structure | With valve |
| TRUSCO Number | 113-1109 |
| Operating Temperature Range (°C) | -20～+80 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Withstand Pressure (kgf/cm²) | 20 |
| M Code | 02109274 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 21 November 2018 |
| Terakhir Diperbaharui | 08 December 2025 |
