-Resistant to rust since it has anti-rust plating.
-A compact type that minimized the outer diameter dimension.
-The centering effect is excellent due to the inlay provided in the collar of the inner ring.
-Phase matching and positioning can be made freely.
-When tightening the lock bolt, there is no movement in the axial direction of the hub.
-Since it is non-backlash, there is no play.
-Machine tools, transportation equipment, robots, various automatic machines.
-Simple anti-rust plating type

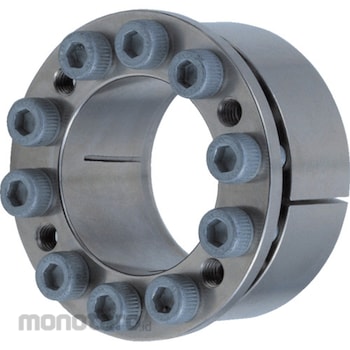

ISEL Mecha Lock MKA1023 1pc
Rp1.699.900
Persediaan
Spesifikasi Produk
| Model Number | MKA1023 |
|---|---|
| Unit | 1pc |
| Inner Diameter (mm) | 10 |
| Outer Diameter (mm) | 23 |
| Length (mm) | 14.80 |
| Allowable Maximum Torque (N m) | 19.60 |
| Allowable Thrust (N m) | 3.90 |
| Working Temperature Range | -20 to 100°C |
| Material | Steel |
| M Code | 7211757 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 22 October 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
