-A domestic product that uses Japan made non asbestos joint sheet (Ask Technica No.4612)and is the most versatile type.
-The product is flexible, fits well to the flange surface and performs excellent sealing effect.
-Not affected by lubricating oil, fuel oil, animal and vegetable oils as well as organic solvents.
-JIS S 3200-7: Complies with 2004 water utensils and leaching performance test.
-As a gasket for flanges of various piping.
-Packing of water-based fluid (water, hotwater, steam), oil-based fluid (thermal oil, lubricant oil, fuel oil), gas-based fluid (air, inert gas, exhaust gas).

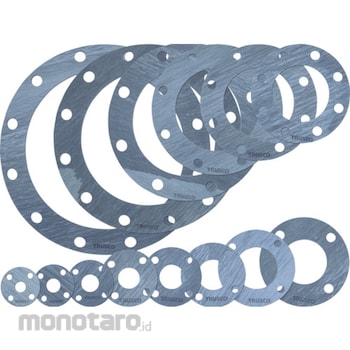

TRUSCO NonAsbestos Gasket Sheet No.4612 TFPS5K15A15 1pc
Rp15.900
Persediaan
Spesifikasi Produk
| Model Number | TFPS5K15A15 |
|---|---|
| Unit | 1pc |
| Nominal Diameter A | 15 |
| Nominal Diameter B | 1/2 |
| Inner Diameter (mm) | 22 |
| Outer Diameter (mm) | 80 |
| Thickness (mm) | 1.50 |
| Center Diameter (mm) | 60 |
| Number | 4 |
| Bolt hole Diameter (mm) | 12 |
| Working Temperature Range | -50 to 180°C |
| Material | Sheets made of synthetic rubber for heat resistant fibers and inorganic fillers |
| M Code | 89717775 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 20 October 2018 |
| Terakhir Diperbaharui | 04 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
-Please use a liquid gasket for gas seal and use at 100℃ or higher (not limited to fluid type).Ketentuan dan Kondisi Barang
