- Affordable fluororesin tubing, which plays an important part in multidiscipline fields.
- Excellent cost-performance fluorine tube
- Almost equivalent chemical resistance to Pisco's existing fluorine (PFA) tube.
- Corresponding to clean-room package specification
- Durable performance
- Operating temperature range: -85-390ｰF

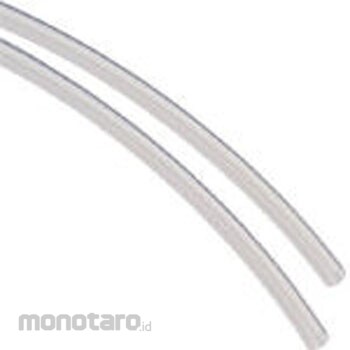

PISCO Fluororesin (FEP) Tube SET1613-5-C Clear 1pc
Rp3.299.900
Persediaan
Spesifikasi Produk
| Model Number | SET1613-5-C |
|---|---|
| Unit | 1pc |
| Material | FEP (fluororesin) |
| Color | Clear |
| Operating Temperature Range | -65 to 200°C (without freezing) |
| Overall Length | 5m |
| Outside Diameter x Inside Diameter | 16x13.0φ mm |
| Working Pressure | 0.7MPa (20°C at 65% RH) |
| Minimum Bending Radius | 94mm |
| Fluid | Air, water (with conditions), chemicals (with conditions) etc |
| Vacuum Pressure | -100kPa |
| Characteristics | Chemical resistant |
| Minimum Mounting Radius | 180mm |
| TRUSCO Number | 442-8030 |
| M Code | 89682223 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
water, when the liquid used is, please use the surge pressure at or below the maximum operating pressure. General tap water is available. Please contact us if other water use. Please contact us when using the chemicals.
