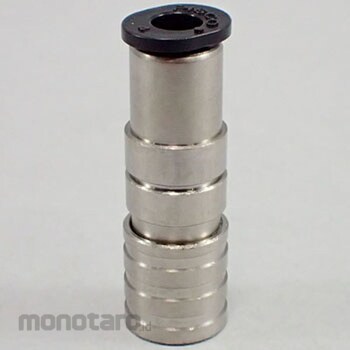

PISCO Light Coupling Socket Straight One-Touch Fitting Included CPSE3-4 1pc
Rp189.900
Persediaan
Spesifikasi Produk
| Model Number | CPSE3-4 |
|---|---|
| Unit | 1pc |
| Shape | straight |
| Type | Isolated type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Series | E3, E7 series |
| Effective Sectional Area | 3.3mm² |
| Maximum Working Pressure | 0.9MPa |
| Dimension B | 29.7mm |
| Dimensions c | 10.9mm |
| Tube Outside Diameter | 4φ mm |
| Fluid | Air, water (conditioned) |
| Dimension P | 9.5mm |
| Vacuum Pressure | -100kPa |
| RoHS Directive | Yes |
| TRUSCO Number | 310-0430 |
| M Code | 35315244 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 21 October 2025 |
