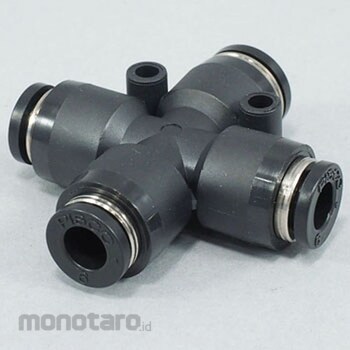

PISCO Crossy PZC8-6 1pc

Name: PISCO Crossy PZC8-6 1pc
Brand: PISCO
SKU: S006771021
Price: 119900 IDR
Availability: OutOfStock

#Nomor SKU S006771021

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PZC8-6
Unit	1pc
Material	Metal body, guide ring/brass+nickel plating. Resin body/polybutylene terephthalate (PBT). Open ring/polyacetal (POM). Lock nail/stainless steel. Tube/polyurethane, nylon, etc. Elastic sleeve, O ring/nitrile rubber (NBR)
Shape	Crossy
Type	Standard type
Operating Temperature Range	0 to 60°C (without freezing)
Effective Sectional Area	9mm²
Maximum Working Pressure	1MPa
Orifice Diameter	5φ mm
Dimension B	46.5mm
Tube Outside Diameter	8x6φ mm
Dimension D (mm)	3.2φ
Fluid	Air, water (conditioned)
Packing	Normal packaging
Dimension E1	23.25mm
Dimension E2	23.2nm
Dimension C1	18.2mm
Dimension C2	16.9mm
Dimension F1	18mm
Dimension F2	9mm
Color	Open Ring/Resin Body: Black
M Code	10370193
Berat (Kg)	0.1
Tanggal Produk Terdaftar	02 October 2018
Terakhir Diperbaharui	22 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Be used for general air pressure piping, is the most standard one-touch fittings. Large selection of models, correspond to any air pressure piping. After installation, you can change the take-off angle of the tube. (Limited to the combination products of

Warning

When water use, the surge pressure below the maximum operating pressure, please be sure to use the insert ring.
