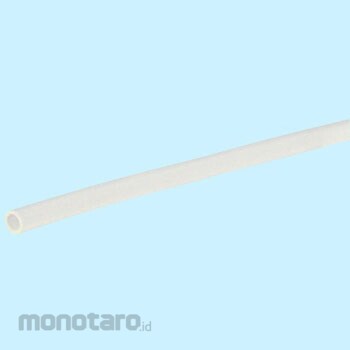

PISCO Soft Nylon Tube NB1075-20-W 1roll
Rp839.900
Persediaan
Spesifikasi Produk
| Model Number | NB1075-20-W |
|---|---|
| Unit | 1roll |
| Material | Soft nylon |
| Color | Milk white |
| Length (m) | 20 |
| Operating Temperature Range (°C) | -15 to 90 (unfrozen) |
| Overall Length (m) | 20 |
| Outside Diameter x Inside Diameter (φ mm) | 10x7.5 |
| Working Pressure (MPa) | 1.0 (when 20°C 65% RH) |
| Minimum Bending Radius (mm) | 30 |
| Fluid | Air, water, thermal oil |
| Working Vacuum Pressure (kPa) | -100 |
| Characteristics | Pressure resistance |
| Minimum Mounting Radius (mm) | 42 |
| TRUSCO Number | 378-1551 |
| M Code | 09149393 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
pull the tube, twisting, please do not take the load of the extreme bending and the like. Collapse of the tube, rupture, there is a possibility that the cause of the missing.
