Be used for general air pressure piping, is the most standard one-touch fittings.
. Large selection of models, correspond to any air pressure piping.
. After installation, you can change the take-off angle of the tube. (Limited to the combination products

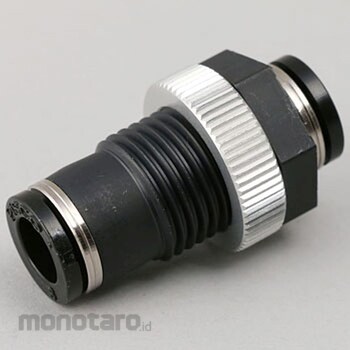

PISCO Bulkhead Union P PMP8 1pc
Rp49.000
Persediaan
Spesifikasi Produk
| Model Number | PMP8 |
|---|---|
| Unit | 1pc |
| Material | (Metal Part) Brass+Nickel Plating. (Resin Body) Polybutylene Terephthalate [PBT]. (Open Ring) Polyacetal [POM]. (Nut) Aluminium |
| Shape | Bulkhead union pie |
| Type | Standard type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Effective Sectional Area | 19.1mm² |
| Maximum Working Pressure | 1MPa |
| Dimension A (mm) | 15.5 |
| Orifice Diameter | 7φ mm |
| Dimension E | 10.7mm |
| Dimension B | 38.4mm |
| Dimensions c | 18.1mm |
| Tube Outside Diameter | 8φ mm |
| Dimensions m | M16x1.5mm |
| Fluid | Air, water (conditioned) |
| Packing | Normal packaging |
| Dimension G | 6mm |
| Dimensions s | 22φ mm |
| Dimension P | 14.2mm |
| Color | Open Ring/Resin Body: Black |
| M Code | 09148745 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 21 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
use fluid is the time of water, please use the surge pressure at or below the maximum operating pressure. General tap water is available. Please be sure to attach the insert ring.
