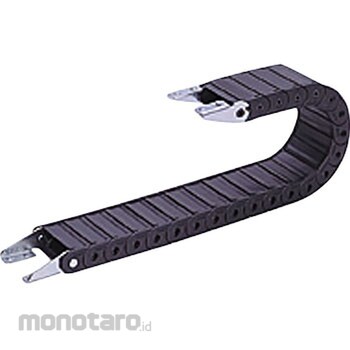

PISCO Plarail Chain HPM Series HPM206-R38 Black 1set(1link)
Rp30.000
Persediaan
Spesifikasi Produk
| Model Number | HPM206-R38 |
|---|---|
| Unit | 1set(1link) |
| Color | black |
| Body Material | Nylon 6+ glass 20% |
| Pitch | 22mm |
| Operating Temperature Range | -10 to 80°C |
| Dimension D (mm) | 13φ |
| Minimum Bending Radius | 38, 50mm |
| Dimension T | 22mm |
| Dimension W | 44mm |
| Materials (mounting bracket) | SPCC+trivalent plating |
| Dimension (HxW) | 22x59mm |
| Operating Environment | In acid, alkaline atmosphere, please avoid under hot water. |
| Maximum Free Span | 1m |
| Maximum Movement Stroke | 1.2m |
| Link Number | 46/m |
| Maximum Cable and Hose Outer Diameter | 13mm |
| Maximum Cable and Hose Mass | 3.5kg/m |
| Maximum Tool-up Speed | 2.5m/s |
| Plastic Rail Chain Mass | 0.46kg/m |
| M Code | 05589054 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 21 October 2025 |
