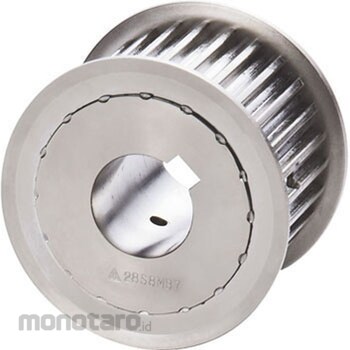

Mitsuboshi Timing Pulley Finished Product (Star Quick) S5M Width 15mm (Aluminum, Alumite White) A4-50S5M0150BF-12T3K 1pc
Rp2.799.900
Persediaan
Spesifikasi Produk
| Model Number | A4-50S5M0150BF-12T3K |
|---|---|
| Unit | 1pc |
| Dimension PD | 79.58mm |
| Dimension F | 86mm |
| Dimension W | 17mm |
| Dimension M | 66mm |
| Dimension LA | twenty twomm |
| Key Groove Width B | Fourmm |
| Nominal Width | 15mm |
| Material | Aluminium (A2017) Pulley |
| Type | Timing pulley |
| Shape | With flange |
| Outer Diameter | 78.62mm |
| Keyway Height h | 1.8mm |
| Dimension LB | 34mm |
| Dimensions h | 2.5mm |
| Surface Treatment | Alumite (white) |
| Number of Teeth | 50 |
| Dimensions d (mm) | 63 |
| In Processing | Two tapping processes (on the key, 120 degree position) |
| Shaft Diameter (mm) | 12 |
| Dimension K (mm) | 12 |
| M Code | 58489706 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 19 September 2018 |
| Terakhir Diperbaharui | 02 August 2025 |
