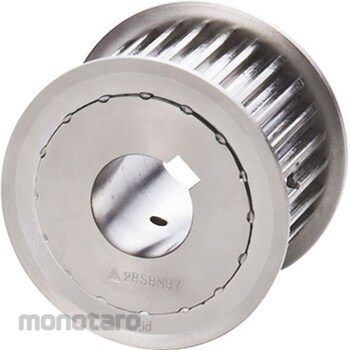

Mitsuboshi Timing Pulley Finished Product (Star Quick) S5M Width 15mm (Made Of Aluminum, Untreated) A1-25S5M0150AF-11T3K 1pc
Rp1.399.900
Persediaan
Spesifikasi Produk
| Model Number | A1-25S5M0150AF-11T3K |
|---|---|
| Unit | 1pc |
| Surface Treatment | Untreated |
| Shaft diameter | 11mm |
| Material | Aluminium (A2017) Pulley |
| Number of Teeth | twenty five |
| Dimension LA | twenty twomm |
| Dimension W | 17mm |
| Dimension M | 32mm |
| Key Groove Width B | Fourmm |
| Type | Timing pulley |
| In Processing | Two tapping processes (on the key, 120 degree position) |
| Nominal Width | 15mm |
| Dimension PD | 39.79mm |
| Dimension F | 44mm |
| Outer Diameter | 38.83mm |
| Shape | With flange |
| Keyway Height H (mm) | 1.8 |
| Dimension H (mm) | 2.5 |
| M Code | 58481841 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 18 September 2018 |
| Terakhir Diperbaharui | 01 December 2025 |
