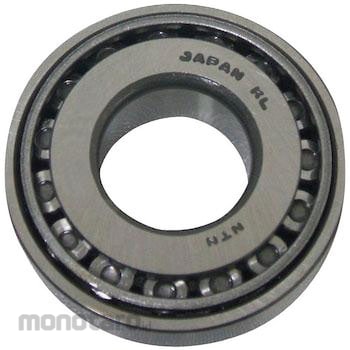

NTN Tapered Roller Bearing 32000 Series 4T-32205 1unit
Rp209.900
Persediaan
Spesifikasi Produk
| Model Number | 4T-32205 |
|---|---|
| Unit | 1unit |
| Dimension A (mm) | 12.5 |
| Shield Shape | Open type |
| Width B (mm) | 18 |
| Chamfer Dimensions r (mm) | 1 |
| Inner Diameter d (Φmm) | 25 |
| Outer Diameter d (mm) | 52 |
| JIS Grade | - |
| Race ring Shape | Tapered roller bearing |
| Outer Ring Type | flat |
| Load Direction | radial |
| Rolling Element Material | High carbon chromium bearing steel |
| Contact Angle (°) | Over 10 ° and below 17 ° |
| Width C (mm) | 16 |
| Number of track trains | Single row |
| Dimension C (mm) | 16 |
| Basic static load rating Cor (N) | 47000 |
| Width (mm) | 19.25 |
| Basic Dynamic Load Rating Cr (N) | 42000 |
| Material (Main Unit) | High carbon chromium bearing steel |
| M Code | 08840596 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 11 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
● It has this name because it uses a conical roller. The inner and outer rings and the apex of the cone of the roller are designed to coincide with one point on the central axis of the bearing, and the roller is guided by the brim of the inner ring. It has a large load capacity for radial loads, unidirectional thrust loads and their combined loads, but is usually used in two opposite directions to generate axial components even when pure radial loads act. To. Clearance is obtained by adjusting the spacing between the inner and outer rings when mounted on the machine. It is a separated form.
