Deep groove ball bearings are most widely used among bearings.
Deep groove ball bearings have inner and outer rings with arc-shaped deep grooves and can receive radial loads, axial loads in both directions, or a combined load that is a combination of these, making them suitable for high-speed rotation.
The shield type has a metal shield plate fixed to the outer ring to form a labyrinth clearance with the V groove on the inner ring seal surface.

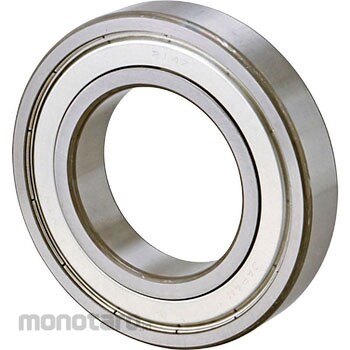

NTN Deep Groove Ball Bearing 6200 Z Series 6203Z 1unit
Rp25.900
Persediaan
Spesifikasi Produk
| Model Number | 6203Z |
|---|---|
| Unit | 1unit |
| Race ring Shape | Deep groove ball bearings |
| Material (Main Unit) | High carbon chromium bearing steel |
| JIS Grade | - |
| Bearing Number | 6200 |
| Number of track trains | Single row |
| Basic Dynamic Load Rating Cr (N) | 9600 |
| Width B (mm) | 12 |
| Shield Shape | One side shield type |
| Rolling Element Material | High carbon chromium bearing steel |
| Inner Diameter d (Φmm) | 17 |
| Load Direction | radial |
| Outer Ring Type | flat |
| Basic static load rating Cor (N) | 4600 |
| Chamfer Dimensions r (mm) | 0.6 |
| Outer Diameter d (mm) | 40 |
| Permissible Oil Lubrication Speed (rpm) | 21000 |
| M Code | 00332157 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 11 September 2018 |
| Terakhir Diperbaharui | 08 December 2025 |
