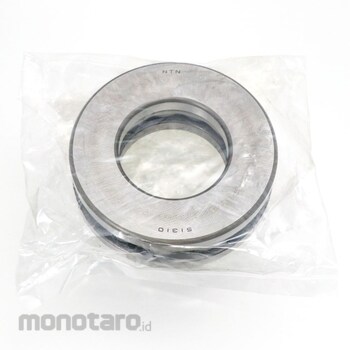

NTN Single Thrust Ball Bearing 51300 Series 51310 1unit
Rp899.900
Persediaan
Spesifikasi Produk
| Model Number | 51310 |
|---|---|
| Unit | 1unit |
| Dimension D1 (mm) | 52 phi (minimum) |
| Basic Static Load Rating Coa (N) | 202000 |
| Rolling Element Material | High carbon chromium bearing steel |
| Load Direction | radial |
| Race ring Shape | Thrust ball bearing |
| Width (mm) | 31 |
| Inner Diameter d (Φmm) | 50 |
| Permissible Oil Lubrication Speed (rpm) | 2600 |
| Material (Main Unit) | High carbon chromium bearing steel |
| Shield Shape | Open type |
| Allowable Rotation Speed Grease Lubrication | 1800 min-1 |
| JIS Grade | - |
| Basic Dynamic Load Rating Ca (N) | 96500 |
| Chamfer Dimensions r (mm) | 1.1 (minimum) |
| Number of track trains | Single row |
| Outer Ring Type | flat |
| Outer Diameter d (mm) | 95 |
| Permissible Grease Lubrication Speed (rpm) | 1800 |
| Dimensions d1 (mm) | 95 phi (maximum) |
| M Code | 00347444 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 11 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Thrust bearings have a contact angle of more than 30 ° and less than 90 °, primarily supporting axial loads.There is a ball between a set of track boards (axial track board and hizing track board), and the contact angle is usually 90 °. Only unidirectional axial loads can be applied, not radial loads. Also unsuitable for high speed rotation
