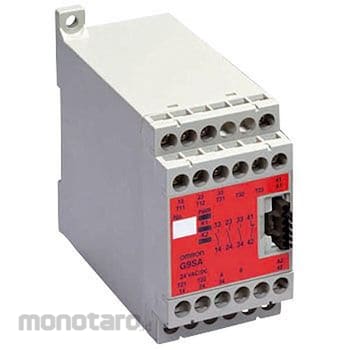

OMRON Safety, Relay Unit G9SA G9SA-301 AC/DC24 1pc

Name: OMRON Safety, Relay Unit G9SA G9SA-301 AC/DC24 1pc
Brand: OMRON
SKU: S005216907
Price: 5699900 IDR
Availability: InStock

#Nomor SKU S005216907

OMRON

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	G9SA-301 AC/DC24
Unit	1pc
Length (mm)	94
Series	G9SA
Width (mm)	45
Rated Voltage (V)	AC/DC24 AC100 to 240
Contact Configuration	(Safety output) 3a contact, (auxiliary output) 1b contact
Power Supply Voltage (V)	AC/DC24
Auxiliary Contact	1
Function	emergency stop
Response Time	10 ms or less
Insulation Resistance (MΩ)	100 or more (DC500V mega)
Operating Ambient Temperature (°C)	-25 to +55 (no icing)
Power Consumption (V/A)	AC / DC24V: 1.8 / 1.7W or less AC100-240V: 9 or less
Contact Resistance (miliΩ)	100
Input Channel	1ch, 2ch input possible
Impact Resistance Durability (m/s²)	100 or more
Ambient Relative Humidity (RH)	35 to 85
Mechanical Durability	5 million times or more (opening and closing frequency 7200 times / h)
Electrical Durability	100,000 times or more (rated load, switching frequency 1800 times / h)
M Code	39071042
Berat (Kg)	0.2
Tanggal Produk Terdaftar	04 September 2018
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

It became small and the series is enriched. Wide range of 45 mm, 3 pole, 5 pole, 3 pole + off-delay 2 pole, 2 hand controllers available. In addition, we also offer 3-pole, 17.5 mm wide extension units with off-delay 3 pole. The extension unit is connected with one touch. The off-delay type is variable in 15 steps. EN ISO 13849-1 (Cat.4 / PLe) certification obtained. DIN rail mounting, screw mounting possible.
