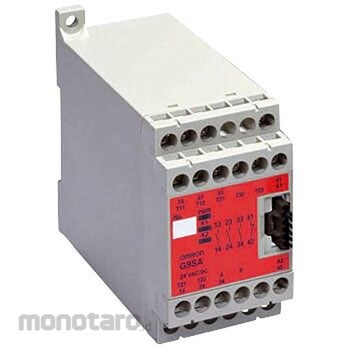

OMRON Safety, Relay Unit G9SA
#Grup produk P102370511
Sebelum PPN:
Rp5.699.900 - Rp8.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Length (mm) | 94 |
|---|---|
| Auxiliary Contact | 1 |
| Response Time | 10 ms or less |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Contact Resistance (miliΩ) | 100 |
| Electrical Durability | 100,000 times or more (rated load, switching frequency 1800 times / h) |
| Input Channel | 1ch, 2ch input possible |
| Insulation Resistance (MΩ) | 100 or more (DC500V mega) |
| Mechanical Durability | 5 million times or more (opening and closing frequency 7200 times / h) |
| Operating Ambient Temperature (°C) | -25 to +55 (no icing) |
| Power Supply Voltage (V) | AC/DC24 |
| Rated Voltage (V) | AC/DC24 AC100 to 240 |
| Series | G9SA |
| Width (mm) | 45 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It became small and the series is enriched. Wide range of 45 mm, 3 pole, 5 pole, 3 pole + off-delay 2 pole, 2 hand controllers available. In addition, we also offer 3-pole, 17.5 mm wide extension units with off-delay 3 pole. The extension unit is connected with one touch. The off-delay type is variable in 15 steps. EN ISO 13849-1 (Cat.4 / PLe) certification obtained. DIN rail mounting, screw mounting possible.
