Timing belt drive is, and high accuracy of the belt, by a pulley that is designed accurately machined to engage smoothly, and the first time is quite useful. Cutting Bob cutter. Good transmission can be obtained.

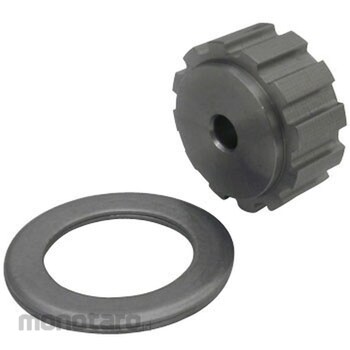

Mitsuboshi Timing Pulley H 200 Model A P24-H-200A 1pc
Rp1.999.900
Persediaan
Spesifikasi Produk
| Model Number | P24-H-200A |
|---|---|
| Unit | 1pc |
| Number of Teeth | 24 |
| Applicable Belt Width | 50.8mm |
| Type | Timing Pulley |
| Pulley | Type A |
| Adaptable Flange | F-1610584 |
| Tooth Width W | 54mm |
| Nominal Width | 200mm |
| Material | Steel material |
| Dimension LA | Steel material |
| Conform Belt | H |
| OD OD | H |
| Shaft Hole Diameter d | 20 / (max) 48Ømm |
| Pitch Diameter | 97.02 |
| Dimensions h | 2.5mm |
| M Code | 35268965 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 04 September 2018 |
| Terakhir Diperbaharui | 26 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
It is not possible to correspond, such as hole drilling and key groove processing at our company, please understand.
