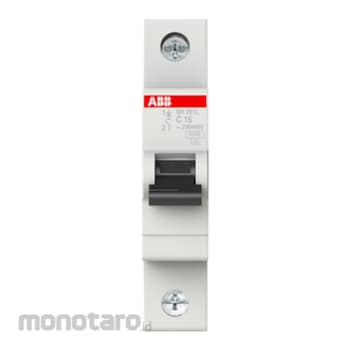

ABB Miniature Circuit Breaker 1P (MCB) SH201L-C16 4.5kA(Icn) C-curve 1P 1pc

Name: ABB Miniature Circuit Breaker 1P (MCB) SH201L-C16 4.5kA(Icn) C-curve 1P 1pc
Brand: ABB
SKU: S004065647
Price: 53900 IDR
Availability: InStock
Rating: 100 (1 reviews)

#Nomor SKU S004065647

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Model Number	SH201L-C16
Unit	1pc
Dimensions (mm)	17.5x69.0x85.0
Nett Weight (g)	125
Number of Poles	1
Tripping Characteristic	C
Max. Operational Voltage	253V AC
Dielectric Test Voltage (kV)	1min: 2 (50/60 Hz)
Degree of Protection	IP20
Mounting on DIN Rail (mm)	TH35-7.5/TH35-15
Mounting Position	Any
Tightening Torque (N m)	2
Connecting Capacity (mm²)	Conductor 25/25 Flexible with Ferrule 0.75-16 Flexible 0.75-16 Rigid 0.75-25 Stranded 0.75-25
Rated Insulation Voltage	acc. to IEC/EN 60664-1 440V
Rated Short-Circuit Capacity	230/400V AC 4.5kA
Contact Position Indication	ON/OFF
Electrical Endurance (cycle)	20000AC
Min. Operational Voltage (V)	12 AC
Berat (Kg)	0.1
Tanggal Produk Terdaftar	26 April 2018
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Compact Home SH200L and System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics, configurations, breaking capacities and rated currents.
