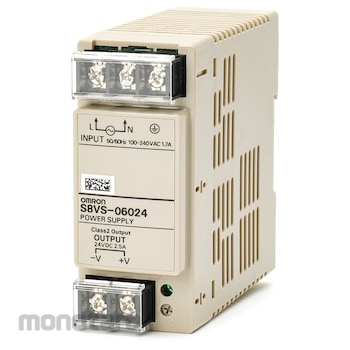

OMRON Switching Power Supply S8VS Series S8VS-06024 1unit

Name: OMRON Switching Power Supply S8VS Series S8VS-06024 1unit
Brand: OMRON
SKU: S003722954
Price: 1999900 IDR
Availability: InStock

#Nomor SKU S003722954

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	S8VS-06024
Unit	1unit
Item Code	S8VS0068G
Function	Series operation: Possible (up to 2 units, external diode required) Parallel operation: Not possible Undervoltage detection display: None
Vibration Resistance	10-55Hz Single amplitude 0.375mm No abnormality for 2 hours in each of 3 directions
Startup Time (ms)	At AC100V input: 620 typ. At 200V input: 400 typ.
Output Holding Time (ms)	AC100V input: 34 typ., AC200V input: 158 typ.
Safety Standard	UL 508(Listing, Class2 Output: Per 1310) UL 60950-1(Recognition), UL 62368-1 CSA C22.2 No.107.1(cUL)(Class2 Output：Per CSA C22.2 No.223) CSA C22.2 No.60950-1(cUR), No.62368-1 EN 50178, EN 60950-1, EN 62368-1 EAC mark, RCM mark
Inrush Current (A)	At AC100V input: 7.5 or less, 14typ. , AC200V input: 35 or less, 28typ.
Shape	Directly attached to DIN rail
Type	Standard type without display monitor
Terminal Shape	screw
Rated Input Voltage (V)	AC100 to 240
Rated Output Current (A)	2.5
Rated Output Voltage (V)	24
Driving	Parallel: Not possible (but backup operation is possible, external diode required), Series: Possible (up to 2 units, external diode required)
Replacement Guideline	Nothing
External Dimensions (WxDxH) (mm)	40x95x109.1
Storage Temperature (°C)	-25 to 65
Insulation Resistance (MΩ)	At 500V DC between 100 or more (all outputs, all alarm outputs) and (all inputs, ground [earth])
Operating Ambient Temperature (°C)	-10 to 60 (no condensation or freezing)
Rated Output Power (W)	60
Alarm Output	Alarm output not possible
Ambient Humidity (%RH)	25-85 (storage humidity 25-90%)
Input Frequency (Hz)	50/60 (47 to 450)
Mounting Direction	Standard installation
Shock Resistance (m/s2)	2
Input Fluctuation (%)	0.5 or less (input AC85~264V at 100 load)
Load Fluctuation	1.5% or less (at rated input, 0 to 100% load)
Overcurrent Protection	105 to 160% of rated output current, reverse L drooping type/intermittent operation type, automatic recovery
Overvoltage Protection	Yes (To recover, turn off the input power, leave it for at least 3 minutes, then turn the input power back on)
Leakage Current (mA)	(When inputting 100V) 0.5 or less, (When inputting 200V) 1.0 or less
Output Voltage Variable Range (%)	-10 to +15 (at V.ADJ)
Output Ripple Noise Voltage (mV)	70 or less
Temperature Fluctuation (%/°C)	0.05 or less
Undervoltage Detection Output	Nothing
Output Indicator Light	Yes (color: green)
Efficiency (%)	78 or more
Harmonic current regulation	EN61000-3-2 compliant
Noise Terminal Voltage	EN55011 Group 1 Class B compliant, FCC Class A compliant
Radiated Interference Electrolytic Strength	EN55011 Group1 ClassB compliant
Output Voltage Display	Nothing
Output Current Display	Nothing
Peak Hold Current Display	Nothing
Characteristic	Replacement time notification function type. The display section shows the status using a 3-digit, 7-segment LED display.
Current (at AC100V input) (A)	1.7 or less, 1.3typ.
Current (at AC200V input) (A)	1.0 or less, 0.68typ.
Berat (Kg)	0.1
Tanggal Produk Terdaftar	06 February 2018
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Withstand voltage (V/min)
Between AC3.0k (all inputs) and (all outputs, all alarm outputs) (detection current 20mA)
Between AC2.0k (all inputs) and (ground [earth]/FG) (detection current 20mA)
Between AC1.0k (all outputs, all alarm outputs) and (ground [earth]/FG) (detection current 30mA)
Between AC500 (all outputs) and (all alarm outputs) (detection current 20mA)
