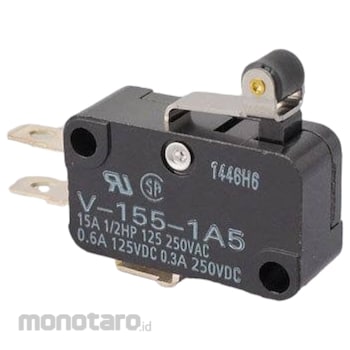

OMRON Miniature Basic Switch (Saklar Mikro) V-155-1A5 BY OMI Short Hinge Roller Lever 1pc
Rp37.900
Persediaan
Spesifikasi Produk
| Model Number | V-155-1A5 BY OMI |
|---|---|
| Unit | 1pc |
| Item Code | V15M0147D |
| Withstand Voltage | Between terminals of the same polarity: AC1000V 50/60Hz 1min Between live metal parts and ground, between each terminal and non-live metal parts: AC1500V 50/60Hz 1min *When using separator |
| PTI (tracking characteristics) | 175 |
| Actuator Type | Hinge roller short lever type |
| Allowable Operating Speed (mm-m/s) | 0.1 to 1 (for pin push button type) |
| Allowable Operation Frequency (times/minute) | Mechanical: 600 (for pin push button type), Electrical: 60 |
| Contact Configuration | 1c |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Contact Spacing (mm) | Standard value: 1 (F gap) |
| Contact Specifications | rivet |
| Electric Shock Protection Class | Class I |
| Electrical Durability | 100,000 times or more (30 times/min), heat-resistant type: 20,000 times or more (30 times/min) |
| Force Required for Operation (OF) (N) | max 2.35 |
| Heat Resistance Temperature (°C) | 150 (heat resistant type) |
| Impact Resistance Durability (m/s²) | Maximum 1000 |
| Inrush Current (A) | Normally closed: max. 36, normally open: max. 36 |
| Insulation Resistance (MΩ) | 100 or more (at DC500V insulation resistance meter) |
| Contact Material | silver alloy |
| Mechanical Durability | More than 50 million times (60 times/min) |
| Minimum Compatible Load (V-mA) | DC5-160 (reference value) |
| Operating Humidity Range (%RH) | 85 or less (at +5 to +35℃) |
| Operating Temperature Range (°C) | -25 to +105 60%RH or less (no freezing or condensation) |
| Protective Structure | IEC IP40 |
| Rated Resistive Load Current (A) | 15 |
| Rated Voltage (V) | AC250 |
| Resistive Load (V-A) | AC250-15, DC125-0.6, DC250-0.3 (Ambient temperature: 20±2℃, Ambient humidity: 65±5%RH, Operation frequency: 30 times/min) |
| Return Force (N) | RF: min 0.49 |
| Shock Resistance Malfunction (m/s) | Maximum 300 |
| Type of Terminal | Solder terminal type |
| Vibration Resistance (Malfunction) | Frequency 10~55Hz Double amplitude 1.5mm |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 06 February 2018 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Miniature Basic Switch, 15 A at 250 VAC, Short hinge roller lever, SPDT, Solder terminals, Maximum Operating Force 1.96 N
