KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
- Accepts nylon and urethane tubes.
- Applicable for both vacuum and positive pressure applications.
- Release collar allows easy removal of tubing without damaging the tube.
- Maximum vacuum pressure of 1.0MPa.

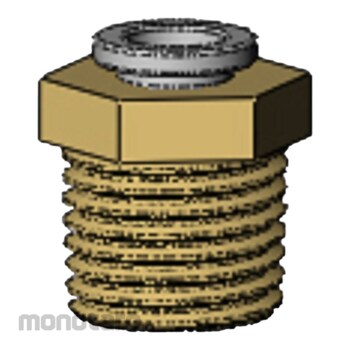

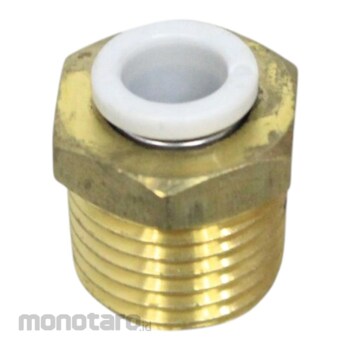

SMC One-touch Fittings Male Connector KQ2H06-02A 1pc
Rp36.000
Persediaan
Spesifikasi Produk
| Model Number | KQ2H06-02A |
|---|---|
| Unit | 1pc |
| Dimension A (mm) | 12 |
| Suitable Tube Outer Diameter (Φmm) | 6 |
| Material (screw) | Brass |
| Type Of Thread | RRc |
| Pipe Connection Diameter | 1/4 |
| Shape | half Union |
| Effective Section Area (mm²) | (Nylon) 13.1 (Urethane) 10.4 |
| Assured Pressure Resistance (MPa) | 3 |
| Operating Temperature Range (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Color | Release bush: light gray |
| Suitable fluid | Air, water |
| Dimensions d (mm) | Φ9.7 |
| Width Across Flats H (mm) | 14 |
| Dimension L (mm) | 16.7 |
| Dimensions m (mm) | 13.3 |
| Working Pressure Range | -100kPa～1MPa |
| Connector Thread | R1/4 |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Sealing Type | [Male screw] (-) No sealant |
| M Code | 41392705 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 08 August 2017 |
| Terakhir Diperbaharui | 27 May 2025 |
