The C85 series conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 8mm through 25mm with standard strokes ranging from 10mm through 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packings and replaceable nose seals, the C85 offers exceptional service life.
- Double acting, single rod, crimped cylinder
- Conforms to ISO 6432 and CETOP RP52P
- Bore sizes : 8, 10, 12, 16, 20, 25
- Standard strokes up to 300mm
- Auto switch capable

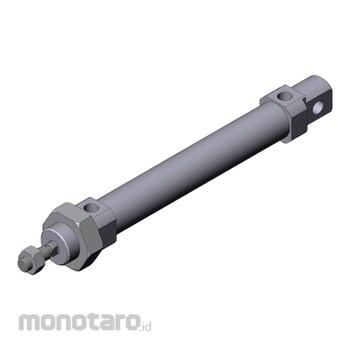

SMC ISO Air Cylinder C85 CD85N20-100-B 1pc
Rp819.900
Persediaan
Spesifikasi Produk
| Model Number | CD85N20-100-B |
|---|---|
| Unit | 1pc |
| Built-in Magnet | Built-in Magnet |
| Head Cover Type | Basic (Integral Clevis) |
| Cylinder Stroke (mm) | Standard Stroke 100 |
| Cushion | Rubber Bumper (Standard) |
| Bore Size (mm) | 20 |
| Rod Boot | Without Rod Boot |
| Mounting Bracket | Without Mounting Bracket |
| Accessory | Without Accessory |
| Auto Switch Mounting Style | Band Mounting Style |
| Auto Switch | Without Auto Switch |
| Made To Order | Standard |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 08 August 2017 |
| Terakhir Diperbaharui | 11 September 2025 |
