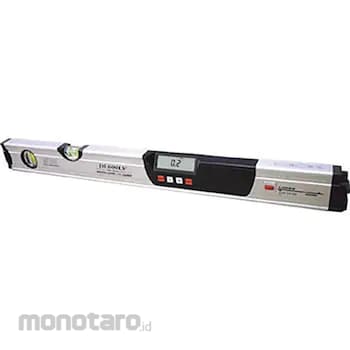

STS Digital Level with Laser (Waterpass Digital) DL600LV 1pc

#Nomor SKU S003014530
Wishlist
Rp3.099.900
Persediaan

Spesifikasi Produk

Model Number DL600LV
Unit 1pc
Weight (g) 690
Power AAA batteries x2 book
Minimum (Percent displayed to two decimal places in terms of units in the 0.1 degree) 0.1 degree
Dimension (Length L x Width W x Thickness) (mm) 600x60x27
Display Buzzer sound (switchable degree /%) 0 degree / 45 degree / 90 degree position when a liquid crystal display
Light Source 635nm red semiconductor laser
Operating Temperature and Humidity Range -5deg C - (non-condensing) 90% less than +50 deg C
Beam Diameter (- 300LX when 200 interior illuminance) phi3mm about 5m in irradiation position
Optical Output Less than 1mW Class 2 (JIS C6802: 2005)
Purpose of Use For horizontal, parallel, or inclination measurement. For horizontal/vertical management of strut or assembled woods. For slope management of pipe, etc.
M Code 36939962
Berat (Kg) 0.8
Tanggal Produk Terdaftar 20 April 2017
Terakhir Diperbaharui 27 May 2025
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
Digital display of angle just by placing, for horizontal and vertical management.
- R cut.
Excellent stability even on pipes with R-cut! Easily manage piping gradients.
- Built-in magnet.
With magnet, it is very convenient for steel pipe, steel frame construction, plant construction, etc.
- LCD.
The numerical value can be read from the upper part by the slope arrangement.
- Display fixing function.
Even if you reach your hand, if the LCD screen cannot be read, you can fix the display with a single button.
- Readjustable.
Even if there is an abnormality in accuracy, readjustment and accuracy confirmation can be performed quickly and easily on site.
- Angle/gradient display.
Each time you press the button, the display unit can be switched between angle (degrees) and gradient (%).
- 25mm laser height.
The laser irradiation height is 25mm from the bottom and workability is outstanding!
- Reversing liquid crystal display.
The horizontal (vertical) direction is displayed with triangles on both sides of the LCD screen. When the main body is turned upside down, the numbers are reversed. Prevent reading mistakes.
- Sound function.
A buzzer sounds a0degrees, 45degrees, and 90degrees positions.
- Comparison display mode.
Arbitrary angles can be set to 0degrees as a reference, and comparison with other angles is possible.
Example: When the 30degrees position is set to 0degrees in the comparison mode, the 50degrees position is displayed as 20degrees in the normal mode.
Peringatan
PERHATIAN: Produk ini mungkin mengandung komponen yang dirancang untuk tegangan 100/110/120V (produk impor).
Penggunaan pada tegangan yang berbeda dapat menyebabkan kerusakan atau bahaya, karena tegangan listrik yang umum digunakan di Indonesia adalah 220V.
Feature
If the body is set to reverse, the figure get reverse and it prevents the reading mistake.
Usage:
Used for horizontal and parallel measurement, Inclination measurement.
