- Dust and drip proof (designed to IEC 529 IP54).
- In addition to the facility for precision measurement, test leads for implified two wire measuring system also supplied as standard accessories (unit can be hung from the neck for simplified measurement).
- Designed to meet IEC 61010-1 safety standard.
- Capable of measuring earth voltage.
- Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
- Small and lightweight. Shock resistant new case material.
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

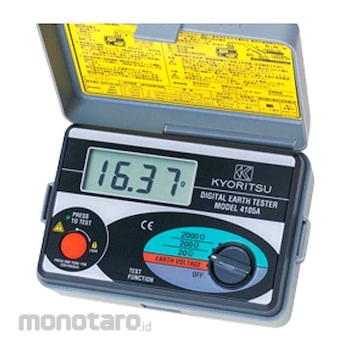

KYORITSU Alat Ukur Ketahanan Tanah 4105A Soft Case Model 1unit
Rp5.499.900
Persediaan
Spesifikasi Produk
| Model Number | 4105A |
|---|---|
| Unit | 1unit |
| Measuring Range | Earth Resistance: 0 - 20 Ohm/0 - 200 Ohm/0 - 2000 Ohm Earth Voltage [50,60Hz]: 0 - 200V AC |
| Accuracy (%) | Earth Resistance: +/- 2rdg +/- 0.1 Ohm (20 Ohm range) +/- 2rdg +/- 3dgt (200 Ohm/2000 Ohm range) Earth Voltage: +/- 1rdg +/- 4dgt |
| Overload Protection | Earth Resistance: 280V AC for 10 seconds across 2 of the 3 terminals Earth Voltage: 300V AC for 1 minute |
| Power Source (V) | R6 (AA) 1.5x6 |
| Dimensions (mm) | 105x158x70 |
| Contents Included | 7095A (Earth resistance test leads) x1set (red-20m, yellow-10m, green-5m); 8032 (Auxiliary earth spikes) x1set; 7127A (Simplified measurement probe) x1set; R6 (AA) x6; 9121 (Shoulder strap); Instruction Manual; Carrying case : 9084(Carrying case[Soft] |
| Berat (Kg) | 2.3 |
| Tanggal Produk Terdaftar | 09 March 2017 |
| Terakhir Diperbaharui | 12 June 2025 |
