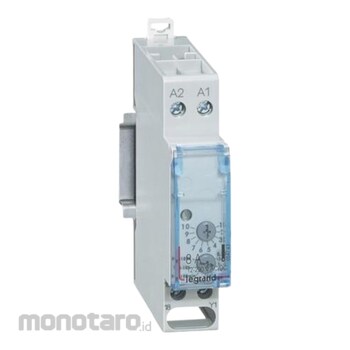

Legrand Time Delay Relay 004740 On Delay 8A 250V 1pc

Name: Legrand Time Delay Relay 004740 On Delay 8A 250V 1pc
Brand: Legrand
SKU: S000081073
Price: 1899900 IDR
Availability: InStock

#Nomor SKU S000081073

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	004740
Unit	1pc
Voltage Type (supply Voltage)	AC
Nominal Switching Current At 250 V AC (A)	8
Type of Excitation	Analogue with single function
Function	Operating delay
1st Interval (s/hour)	0.1-360000
Mounting Method	DIN rail
Width in Number of Modular Spacings	1
Built-in Height (mm)	70
Number of Contacts As Normally Open Contact	-
Number of Contacts As Normally Closed Contact	-
Number of Changeover Switches	1
Control Voltage 1 (V)	12-230
Type of Control Voltage 1	AC/DC
Frequency Control Voltage 1 (Hz)	50-60
Supply Voltage (V)	250-250
Berat (Kg)	0.1
Tanggal Produk Terdaftar	02 February 2017
Terakhir Diperbaharui	25 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Time delay relays - 12 to 230 V~ and =
- For controlling the switching ON or OFF of a circuit (lighting, ventilation, automation, signalling) in operation for a specific time from 0,1 sec to 100 hrs
- Supply voltage : 12 to 230 V~ (50/60 Hz) and =
- Output : 8 A - 250 V~ - cos Ï = 1 per inverter contact
Time delay relaysON delay
- Delays load switch - on (alarm, lighting, contactor)
- The time period starts when the relay is switched ON.
- At the end of the time period (T) , the load is switched ON
- Number of modules : 1
