'- The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes.
- True RMS; Accurate true RMS readings of AC current including disorted waveform from 1mA to 30.0A.
- Noise check function; A function to detect current, which effects on an earth resistance measurement and display "NOISE" mark on the LCD.
- Memory function; Save and display up to 100 measurement data.
- Data hold function/buzzer function/back light function.
- Compliant with safety standards of IEC 61010-1 : CAT IV 300V pollution degree2.

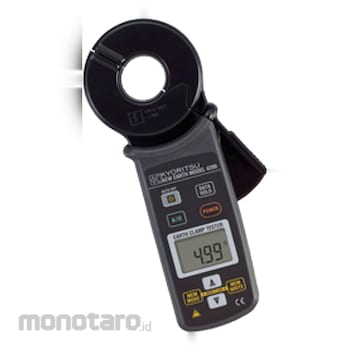

KYORITSU Earth Clamp Testers (Tang Ampere Grounding) 4200 32mm 1set
Rp17.999.900
Persediaan
Spesifikasi Produk
| Model Number | 4200 |
|---|---|
| Unit | 1set |
| Earth Resistance Auto Range (ohm) | 20.00/200.00/1500 |
| Over Range Indication | "OL"is displayed when input exceeds the upper limit of a measuring range |
| Current Consumption (mA) | Approx. 50 (max.100) |
| Conductor Size (mm) | Approx. 32 |
| Power Source | DC6V : R6(sizeAA manganese battery) x4 or LR6 (sizeAA alkaline battery) x4 |
| Dimensions (mm) | 246x120x54 (LxWxD) |
| Response Time (s) | Approx. 7 (Earth resistance); Approx. 24 (AC current) |
| Set Contents | R6 x4, instruction manual 8304 (Resister for operation check) 9166 (Carrying case [hard]) |
| Berat (Kg) | 2.4 |
| Tanggal Produk Terdaftar | 02 March 2017 |
| Terakhir Diperbaharui | 12 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
A single earthing can not be measured. (Only for multiple earthing system)Ketentuan dan Kondisi Barang
