- The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
- Dust and drip proof (designed to IEC 529 IP54).
- Earth resistance value can be read directly from the scale.
- Designed to meet IEC 61010-1 safety standard.
- Capable of measuring earth voltage.
- Small and lightweight. Shock resistant new case material.
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
- Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp.
- Lead wire connection to C and E terminals is good when "OK" lamp is illuminated.

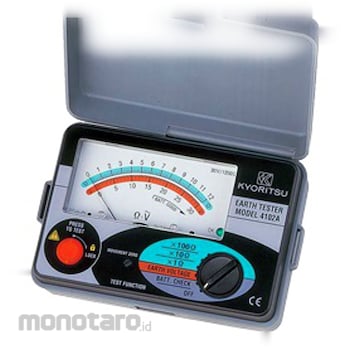

KYORITSU Alat Ukur Ketahanan Tanah 4102A Soft Case Model 1unit
Rp6.399.900
Persediaan
Spesifikasi Produk
| Model Number | 4102A |
|---|---|
| Unit | 1unit |
| Measuring Range | Earth Resistance: 0-12 Ohm/0-120 Ohm/0-1200 Ohm. Earth Voltage [50,60Hz]: 0 - 30V AC. |
| Accuracy (%) | Earth Resistance: +/- 3 of full scale Earth Voltage: +/- 3 of full scale |
| Overload Protection | Earth Resistance: 276V AC for 10 secons; across 2 of the 3 terminals; Earth Voltage: 276V AC for 1 minute |
| Power Source (V) | R6 (AA) 1.5x6 |
| Dimensions (mm) | 105x158x70 |
| Contents Included | 7095A (Earth resistance test leads) x1set. (red-20m, yellow-10m, green-5m); 8032 (Auxiliary earth spikes) x1set; 7127A (Simplified measurement probe) x1set; R6 (AA) x6; 9121 (Shoulder strap); Instruction Manual; Carrying case : 9084(Carrying case[Soft] |
| Berat (Kg) | 2.3 |
| Tanggal Produk Terdaftar | 27 February 2017 |
| Terakhir Diperbaharui | 27 May 2025 |
