USE
- For wide of variety welding measurements
Undercut depth / Groove angle / Inconsistent level
Height of fillet weld & bead weld / Throat thickness of fillet
Root opening / Plate thickness / External diameter of circular
workpiece / Width of bead weld
MATERIAL
- Stainless steel

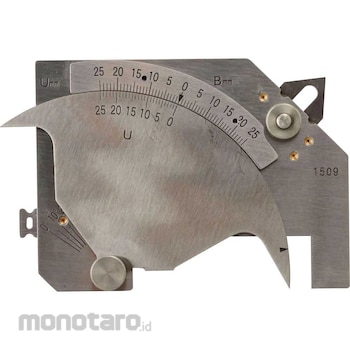

Niigata Seiki (SK) Welding Gauge WGU-8M 1unit
Rp2.899.900
Persediaan
Spesifikasi Produk
| Model Number | WGU-8M |
|---|---|
| Unit | 1unit |
| Application | Weld overlay, measurement of fillet size and angle, swell measurement of pressure welding |
| TRUSCO Part Number | 817-8082 |
| Material | Stainless |
| Length (mm) | 117 |
| Width (mm) | 78 |
| Height (mm) | 7 |
| Groove angle (°) | 0 to 70 (minimum reading: 5) |
| Round Bar Diameter R (Ø mm) | 30 |
| Body Scale (mm) | 50/60 |
| Extra Height (mm) | 25 |
| Fillet Leg Length (mm) | 25 |
| Fillet Throat Thickness (mm) | 15 |
| Undercut depth (mm) | 25 |
| Route Spacing (mm) | 2-5 |
| Bead Width (mm) | 0-53 |
| Length Measurement Accuracy (mm) | ± 0.4 (throat thickness measurement ± 0.7 factory manufacturing accuracy) |
| Angle Measurement Accuracy (°) | ± 2 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 01 October 2016 |
| Terakhir Diperbaharui | 03 September 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Additional function for measurement of external diameter of circular workpiece, swelling of pressure welding of reinforcing iron and width of bead weld- Bead stride width: 53mm
- Bevel angle range: 0-70°
