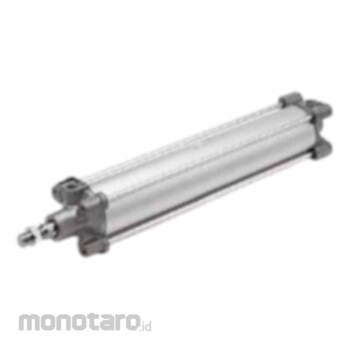

SMC Standard Type Double Acting Single Rod C96 Series

●New series added: Series C96-W/C96K/C96K-W/C96Y [New]
●Made to Order added [New]
●Lightweight up to 17% weight reduced
●By adopting a new cushion method (Air cushion + Bumper cushion),Cycle time shortened
●The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke.
.
Field
Value
Value Details

With Auto Switch(Built-in Magnet)
D
With Auto Switch

Mounting Style
B
Basic

Bore Size
80
Bore Size 80 mm

Cylinder Stroke
50
Standard Stroke 50 mm

Rod Boot
-
Without Rod Boot

Dual Stroke Mark
-
Without Two Stroke Mark

Cylinder Stroke 2
-
Without Cylinder Stroke 2

Cushion
C
Air Cushion On Both Ends+Bumper Cushion

Rod Boot 2
-
Without Rod Boot

Auto Switch
-
Without Auto Switch

Number Of Auto Switches
-
2 pcs. Or None

Made To Order
-
Standard
