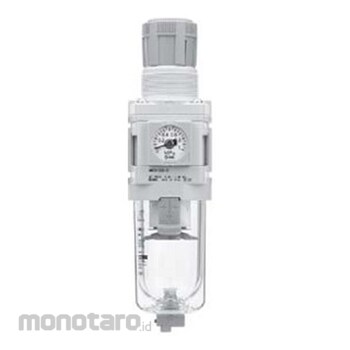

SMC Filter Regulator AW-D Series

●Integrated filter and regulator units save space and require less piping
●Easy to handle
  Easy to hold when unlocked
●Better visibility & environmental resistance
  2-layer construction: The bowl is covered with a transparent bowl guard!
  Better visibility: 360°
●Interchangeability is maintained
  The mounting pitch for panel mounting is interchangeable between
  AR(K) and AR(K)-B, and AW(K) and AW(K)-B.
  Brackets and set nuts are common to existing and new products
Field
Value
Value Details

Body Size
20
20

With Backflow Function
-
Without Backflow Function

Pipe Thread Type
-
Rc

Port Size
01
1/8

Bracket
-
Without Bracket

Float Type Auto Drain
-
Without Auto Drain

Digital Pressure Switch
-
Without Digital Pressure Switch

Pressure Gauge/Mounting Option
-
Without Pressure Gauge

Set Pressure
-
0.05 To 0.85 Mpa Setting;X406:0.05 To 0.4 MPa Setting

Bowl
-
Polycarbonate Bowl

Drain Port Option a
-
With Drain Cock

Exhaust Mechanism
-
Relieving Type

Flow Direction
-
Flow Direction:Left To Right

Drain Port Option b
-
Drain Cock Without Barb Fitting (For Φ6 X Φ4 Nylon Tube)

Unit
-
Unit On Product Label:MPa;Pressure Gauge In SI units:MPa

Made To Order
-
Standard
