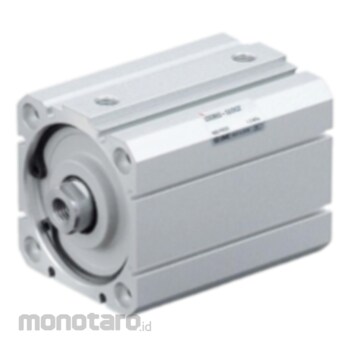

SMC Compact Cylinder Double Acting Single Rod C55-Z Series

●An auto air cushion type has been added. [New]
●Smooth cylinder (C55Y) has been added. [New]
●Made of stainless steel (-XC6) has been added. [New]
●With coil scraper (-XC35) has been added. [New]
●Auto switch mounting groove: T-slot type (-X1439) has been added. [New]
●Bore sizes Φ12 and Φ16 have been added. [New]
  ∗ These are not subject to ISO Standards (21287).
●ISO Standards (21287)
●1.8 times the anti-lateral load capacity
  The allowable lateral load has been improved by changing the material of the bushing. (For Φ20)
●Auto air cushion Allowable kinetic energy increased by approx. 3 times
  (By combining an air cushion and a rubber bumper)
Field
Value
Value Details

Built-in Magnet
-
Without Built-in Magnet

Mounting Style
B
Through-hole/Both Ends Tapped Common (Standard)

Bore Size
63
Bore Size 63 mm

Cylinder Stroke
25
Standard Stroke 25 mm

Action
D
Double Acting

Cushion
C
Rubber Bumper

Rod End Thread
M
Rod End Male Thread

Auto Switch
-
Without Auto Switch

Number Of Auto Switches
-
2 pcs. Or None

Made To Order
-
Standard
