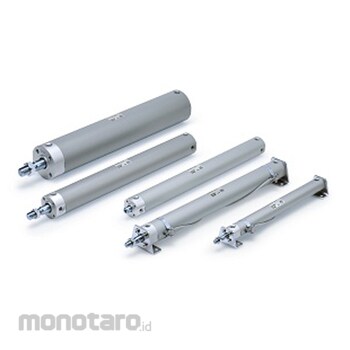

SMC Air Cylinder Standard Type Double Acting Single Rod CG1ZN25 Series

●A single acting type/A direct mount type/An end lock type has been added [New]
●Improved piping flexibility
  Piping can be connected every 90 degrees (4 positions). (Made to order: XC3)
●Cylinder with rod end bracket is standardized
●Interchangeable in mounting with the existing model
●Various mounting bracket options
●Part numbers for products with a rod end bracket and/or a pivot bracket
  It is not necessary to order a bracket for the applicable cylinder separately
Field
Value
Value Details

With Auto Switch(Built-in Magnet)
-
Without Auto Switch

Mounting
Z
Basic(With Trunnion Mounting Female Thread)

Type
N
Rubber Cushion

Bore Size
25
Bore Size 25 mm

Port Thread Type
-
Rubber Bumper:Rc(Φ20-Φ100);Air Cushion:M5×0.8(Φ20,Φ25),Rc(Φ32-Φ100).

Cylinder Stroke
20

Rod End Thread
-
Male Rod End

Suffix For Cylinder (Rod Boot)
-
Without Rod Boot

Pivot Bracket
-
No Bracket

Rod End Bracket
-
No Bracket

Auto Switch
-
Without Auto Switch

Number Of Auto Switches
-
2 pcs. Or None

Made To Order
-
Standard
