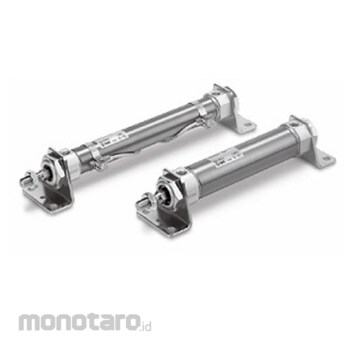

SMC Air Cylinder Non-Rotating Rod Type Double Acting Single Rod CDM2KL25 Series

●A double rod type, a single acting type, a non-rotating rod type, and a direct mount type have been added. [New]
●Made-to-order options have been added. [New]
  Special port location (-XC3), Made of stainless steel (-XC6), Dust resistant cylinder (-XC4), Heat- resistant cylinder (-XB6), etc.
●Cylinder with rod end bracket is standardized.
●Interchangeable in mounting with the existing model
●Various mounting bracket options
  Mounting brackets suitable for various installation conditions
  Improved mounting flexibility
●Part numbers for products with a rod end bracket and/or a pivot bracket available


Field
Value
Value Details

With Auto Switch(Built-in Magnet)
D
With Auto Switch(Built-in Magnet)

Mounting
L
Axial Foot

Bore Size
25
Bore Size 25 mm

Port Thread Type
-
Rc

Cylinder Stroke
30

Cushion
-
Rubber Bumper

Rod And Thread
-
Rod End Male Thread

Pivot Bracket
-
No Bracket

Rod End Bracket
-
Without Rod End Bracket

Auto Switch
-
Without Auto Switch

Number Of Auto Switches
-
2 pcs. Or None

Made To Order
-
Standard
