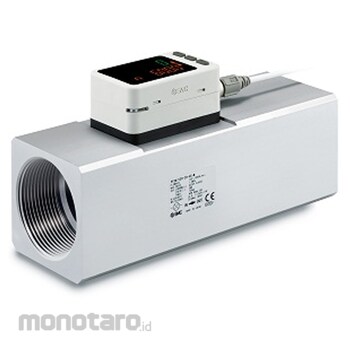

SMC 2-Color Display Digital Flow Switch PF3A7 Series

●Applicable fluid: Air, N2、Ar、CO2 [New]
●500 L/4000 L/8000 L types have been added to the modular type. [New]
●The display range has been expanded. (1.5 times the rated flow range) [New]
●Accumulated pulse conversion value: Select from 4 types based on the flow range [New]
●Accumulated pulse width: Select a setting between 50 to 100 ms [New]
●A wide range of flow measurement is possible with 1 product.
●Supports the IO-Link communication protocol
Field
Value
Value Details

Type
7
Integrated Display

Rated Flow Range (Flow Range)
06
60 To 6000 L/min

Flow Type
H
Large Flow Type

Thread Type
-
Rc

Port Size
14
1 1/2

Output Specifications
DS
OUT:NPN;FUNC:Analog Current Output External Input

Option
-
With Lead Wire And M12 Connector (3 m)

Remote Sensor Unit
-
Units Selection Function

Calibration Certificate
-
None
