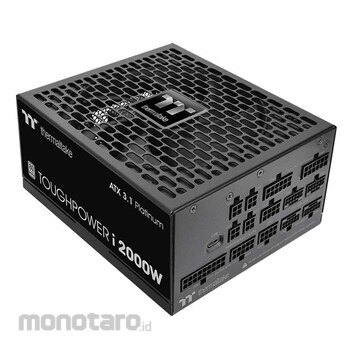

Thermaltake Power Supply Toughpower i

Smart Digital Control


Built on a powerful digital platform, the Toughpower i2000W lets you monitor wattage, voltage, efficiency, and temperature in real time via the TT RGB PLUS software on desktop or mobile. Stay in control. Stay protected.

















Smarter Control, Safer Power.


With real-time monitoring, single/ multi rail mode switching, and Smart Zero Fan control via TT RGB PLUS software, you gain full command over performance, efficiency, and protection.
















Smart Monitoring, Flexible Protection


Monitor power usage in real time for PCI-E, CPU, and 12V-2x6 outputs via software, while switching between single and multi rail modes to optimize protection for overclocking or multi GPU setups.






































ATX 3.1 Ready

Toughpower i2000W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.











ATX 3.0


ATX 2.0



Total power excursion



2X



1.3X













2X
Total Power Excursion


3X
GPU Power Excursion















PCIe Gen 5.1 Ready


Toughpower i2000W comes with native 12V-2x6 (16 pin) connectors to deliver powerful and stable performance, allowing the PSU to support next-generation GPUs.





The wattage marked on the 12V-2x6 connector follows Intel's recommended design guideline. With four native 16 pin (12V-2x6) PCIe connectors, the i2000W can support multiple high-wattage PCIe 5.1 graphics cards simultaneously.









Note:

1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.


2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12V-2x6 cable.







16pin Connector
















Be Smart, Stay Quiet

Featuring an ultra-quiet 140mm fan with Smart Zero Fan technology to provide efficient and silent cooling. Fully modular low-profile cables let users to have cleaner builds and optimize airflow.


















High Amperage Single +12V Rail & High-Class Technologies



Powerful single +12V rail can deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides extremely stable operation and enhanced voltage regulation.











AC INPUT


Input Voltage: 220 - 240V~


Input Current: 15.0A Max.



Frequency: 50 - 60Hz





DC
OUTPUT

+3.3V


+5V


+12V


+5VSB





Max Output Current



22.0A


22.0A


166.67A



3.0A





Max Output Power



120W


1999.92W




15W





Total Power



2000W


























Smart Power in the Cloud

Monitor and analyze real time power data across devices with DPS G software. Upload key information to the cloud and easily share reports through mobile or social platforms.






















Built-in Industrial Grade Protection

To protect your hardware, Toughpower i2000W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).













OCP
Over Current
Protection



OVP

Over Voltage
Protection




UVP

Under Voltage
Protection





OPP
Over Power
Protection




SCP

Short Circuit
Protection




OTP

Over Temperature
Protection

























Fully Modular Low-Profile Cables

Offers users more flexibilities for PSU installation. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.











Connector Type

Connector Quantity




Cable Quantity

Cable Length






Main Power
(24Pin)

X 1



X 1
600mm




ATX 12V

(4+4Pin)


X 2



X 2
700mm





PCIe

(6+2Pin)


X 8



X 8
500mm





PCIe

(12+4Pin)

600W


X 4



X 4

600mm



SATA

(5Pin)

X 12



X 3

500mm+150mm+

150mm+150mm



Peripheral(4Pin)

X 8



X 2

500mm+150mm
+150mm+150mm
















80 PLUS Platinum Certified


80 PLUS Platinum(230V EU) certified, the 2000W model delivers up to 92% energy efficiency, minimizing power loss and heat generation even under full load.
