Double-acting valve structure
Made of stainless steel with excellent corrosion resistance.
Achieves a maximum operating pressure of 20.6 MPa with a unique "internal seal structure".

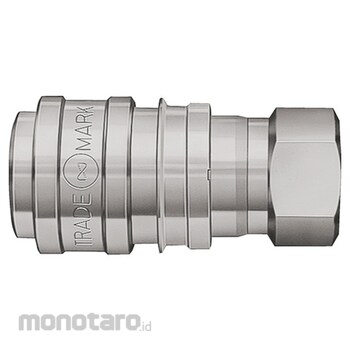

NITTO S210 Cupla
#Grup produk P117964590
Sebelum PPN:
Rp2.299.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Applicable Fluid | Water, Hydraulic Oil, Gas |
|---|---|
| Body Material | Stainless steel (SUS304) |
| Maximum Operating Pressure (MPa) | 20.6 |
| Operating Temperature Range (°C) | -20 to 180 |
| Pressure Resistance (MPa) | 31 |
| Seal Rubber Materials | Fluororubber (FKM) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Made of stainless steel with excellent corrosion resistance.- Thanks to its unique internal sealing structure, it achieves a maximum operating pressure of 20.6 MPa despite being made of stainless steel.
- The main body is made of stainless steel (SUS304), which has excellent corrosion resistance.
- It is suitable for use in harsh environments such as marine development.
- By employing a unique "internal seal structure," it achieves a maximum operating pressure of 20.6 MPa {210 kgf/cm²}, equivalent to that of steel, despite being made of stainless steel.
- Equipped with a separation prevention mechanism (safety lock) to prevent accidental separation of the socket and plug after connection.
- Both the socket and plug have built-in automatic opening and closing valves to prevent fluid leakage when disconnected.
- It comes standard with a dip molding cap.
