Bohlender Manifold cap for GLS80 bottles

Sebelum PPN:
Rp17.999.900
Spesifikasi
AS ONE Part Number65-9641-94

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

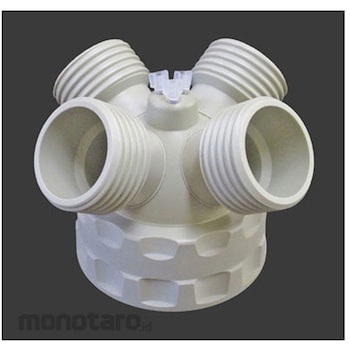

Comes with a GLS80 female thread and four GL45 male threads.
Multiple piping lines can be consolidated into a bottle with a GLS80 male thread.
In addition, the top center section of the cap has three 1/4-28UNF female threaded ports, which can be used to connect 1/8" or 1/16" outer diameter fluororesin tubes using separately sold fittings.
When not in use, close with the included PFA plug.
There is a 10mm high space on the side of the grey cap where you can write or attach a label with a permanent marker.
When attaching or detaching the cap, the GLS80 cap can be rotated freely while preventing the tube already connected to the GL45 male thread from twisting.
The cap is made entirely of polypropylene (PP) and is heat resistant up to +110°C. The PFA plug is heat resistant up to +260°C.
Feature
Specification
GL45 male x 4, 1/4-28 UNF female x 3, UNF closing plug x 3
