FESTO Guided cylinder, slide bearing, DFM series

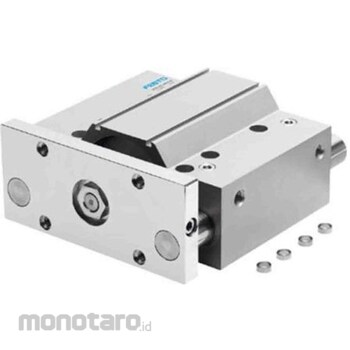

Festo Pneumatically Guided Cylinder, Double Acting - DFM Series - DFM-100-125-PA-GF This guided air cylinder from Festo allows controlled linear motion for side-loading applications. High resistance to torque and lateral forces prevents the unit's piston from rotating under heavy loads. This ensures operational stability and precise movement. Elastic cushion plates at both ends of the cylinder reduce operating noise and increase the unit's service life. The drive and guide are housed in a compact single housing that can be assembled in any position. The component is maintenance-free and suitable for clamping, lifting and stopping applications. Stroke length 125 mm Double bore operation Piston diameter is 100 mm Type of sliding bearing Maximum operating pressure is 10 bar Operating temperature range: -20 → +80 °C Unit weight is 17.09 kg Center of gravity distance from working load to yoke plate 125 mm Choice of compressed air supply ports Range information Festo DFM series guided air drives offer high load capacity and minimal cycles The drive is available with various mounting and installation options Festo's DFM series guided actuators feature a flexible cushion plate to reduce noise during operation and increase service life. An integrated slot in the actuator body allows the incorporation of a proximity sensor to measure the linear movement of the piston. The piston diameter is 100 mm and the stroke length is 125 mm. It can be assembled in any position. Ambient temperature: -20 → +80 °C Center of gravity distance from working load to yoke plate 125 mm
