FESTO Guide cylinder DFM series G 3/8

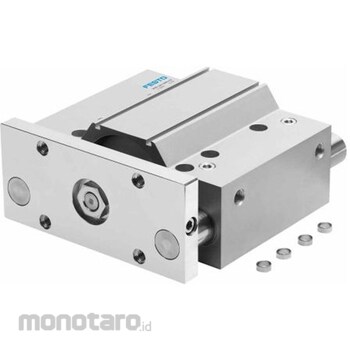

Festo Double-Acting Pneumatic Guided Cylinder, 80 mm Bore, 125 mm Stroke - DFM Series - DFM-80-125-PA-GF This actuator from Festo combines the functions of a guide and a drive in one compact unit
Its typically used for clamping, lifting and stopping tasks in factory automation setups
Thanks to its large-diameter guide rods and four plain-bearing bushes, the unit offers high rigidity.
It absorbs torsion and shear stresses with ease, so you can use it for intensive applications
A choice of multiple supply ports means its easy to install and maintain. Fast installation saves you time and effort High resistance to torque and lateral forces for use in heavy-duty applications Wide range of mounting options for added versatility Application Information Conveyor and assembly systems Manufacturing units Electrical sectorFesto's DFM series guided actuators are fitted with flexible cushioning rings or plates at both ends to reduce noise during operation and extend service life. An integrated slot in the actuator body allows the incorporation of a proximity sensor to measure the linear movement of the piston. The piston diameter is 80 mm and the stroke length is 125 mm and can be assembled in any position. Does this unit need external cushioning Ambient temperature: -20 → 80 °C Center of gravity distance from working load to yoke plate 125 mmThis guided actuator is fitted with flexible cushioning rings or plates at both ends to reduce stress and damage due to impact forces
What type of seals does this unit use? This guided actuator is fitted with NBR (nitrile butadiene rubber) seals, which offer good resistance to abrasion and compression.
The seals can also withstand contact with petroleum oils, as well as common lubricants and greases, without degrading.
