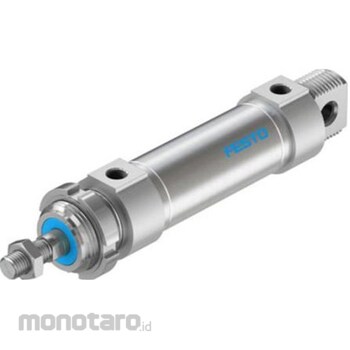

FESTO Air Pressure Roundline Cylinder DSNU-32-50-PPV-A Series Bore: 32mm Stroke: 50mm

Festo Air Round Line Cylinder, 32 mm Bore, 50 mm Stroke - DSNU Series - DSNU-32-50 This pneumatic piston rod cylinder from Festo is suitable for position sensing applications in pneumatic systems. It has a long service life and high load ability for optimal performance and minimal machine downtime. This double acting unit has adjustable cushions on both ends to reduce noise and vibration. The barrel is made from high quality stainless steel for superior strength and corrosion resistance. This adjustable cushioned cylinder is suitable for medium to high loads with high speeds and impact energies. Internal diameter 32 mm Stroke 50 mm Piston rod thread M5 x 1.25 Cushion length 14 mm Cushioning material in Polyphenylene Vinylene (PPV) Moving mass of 166 g Operating pressure: 1 to 10 bar Ambient temperature range: -20 → +80 °C Range information The Festo DSNU series round cylinders are available in a range of sizes from 32 to 63 mm The units in this series provide excellent running performance and a long service life due to the smooth and robust inner surface of the cylinder barrel The Festo round cylinder DSNU-32-50 PPV-A features adjustable end position cushioning Position sensing with cushioning Various mounting options with or without additional mounting components This product meets the highest requirements in terms of operating characteristics, service life and load carrying ability The cylinder barrel is made of stainless steel and has bearings and end caps made of drawn aluminium alloy. Stroke: 50 mm Piston diameter = 32 mm Piston rod thread: M10x1 25 Cushioning: PPV: Adjustable air cushion on both ends Assembly position: Any
