FESTO Air Cylinder

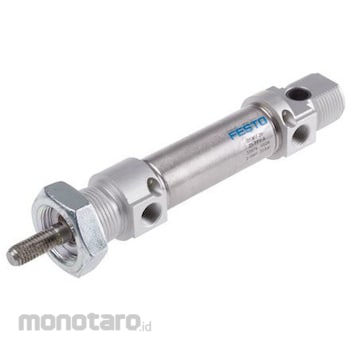

DSNU Series Round Line Cylinders - Adjustable Pneumatic CushioningThe Festo DSNU series round line air cylinders feature adjustable air cushions on both ends of the actuator barrel. They feature a stainless steel piston rod in a three component system for excellent operating performance and long life. These double acting air actuators have two connection ports for compressed air, which is used to push and retract the piston rod in a linear fashion. A wide range of accessories allows the DSNU cylinders to be mounted virtually anywhere. Adjustable Pneumatic CushioningThe DSNU PPV type adjustable cushion air cylinders feature a special cushion piston as an extension of the main piston. This air cushion forms an energy absorbing air cushion in the final position, compressing and exhausting the air as desired. This method of energy absorption makes the cylinders suitable for high speed applications with medium to heavy loads. Features and Benefits:Complies with ISO6432, which specifies metric mounting dimensions Stainless steel piston rod with threaded connector Available in a range of stroke lengths and bore diameters, allowing configurations for a wide range of applications Long service life How do I mount a double acting air cylinder? DSNU Series circular air actuators are ISO 6432 compliant and can be mounted in any position to suit your application. The ISO 6432 standard specifies metric mounting dimensions for cylinders to ensure compatibility between commonly used hydraulic and air cylinders. Optional mounting accessories provide even more flexibility. Cylinders can be mounted with swivel blanking for free movement, foot mounted to support high loads, or combined with other actuators to achieve an even wider range of motion.
