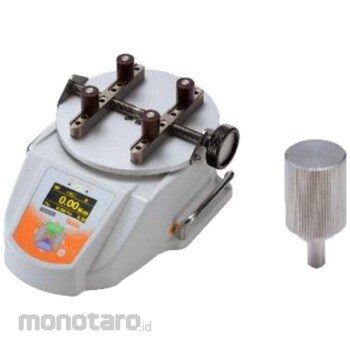

IMADA High-performance screw cap torque meter DTXA series

High-speed sampling (2000Hz) follows sudden load changes, achieving high reproducibility for both peak values and continuous data.
It is possible to measure the opening and closing torque of various container lids such as PET bottles and glass bottles.
The bright and easy-to-read OLED display is split into three sections, allowing you to display your preferred measurement parameters.
A wide range of table attachments (sold separately) are available to accommodate a wide range of samples.
By using a goniometer (sold separately), you can measure angles, as well as connect a USB memory stick and detect the 1st and 2nd peaks, which are additional functions unique to high-performance models.
This high-performance screw cap torque meter covers torque measurements from 50 N-cm to 1000 N-cm (10 N-m). It can measure the torque required to open and close a variety of container closures, including PET bottles and glass bottles. In addition to the standard model (DTXS series)'s high measurement repeatability through high-speed sampling and a variety of data output methods, it also features angle input/output and the ability to connect a USB memory stick. The Next series, with firmware version 5 or later, offers improved measurement stability through reduced noise, and offers expandability and convenience through the download of additional features (firmware downloads) and various software and instruction manuals from a dedicated website.
